LED Lights for your Camper 101










LED Cluster Bulb Vs LED Pad








This is a video on a
Pro Series Circuit Tester - Visual and Audible




How to install a LED pad in a Dome/Pancake Light





How to repair a Fluorescent light with LED strips






How to install the LED Tail-light Kit for the

Airstream 4.25 Monarch tail Light.






This is Airstream 1966 to 1981 wiring.

Airstream was wired---------------------- The Function----------------------------- Industry Standard
Red----------------------------------- Left turn/stop -------------------------------------Red
Green------------------------------ Tail light/clearance ----------------------------------Green
Brown -----------------------------Right turn/stop------------------------------------- Brown
Blue ----------------------------------Charge line ---------------------------------------Black
White ------------------------------------Ground ----------------------------------------White
Black---------------------------------- Backup lights -----------------------------------Yellow
Yellow------------------------------------- Brakes -----------------------------------------Blue

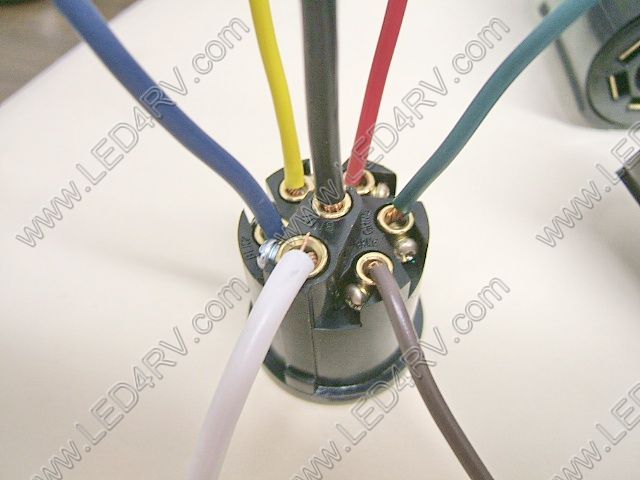

Below are the picture how it looked

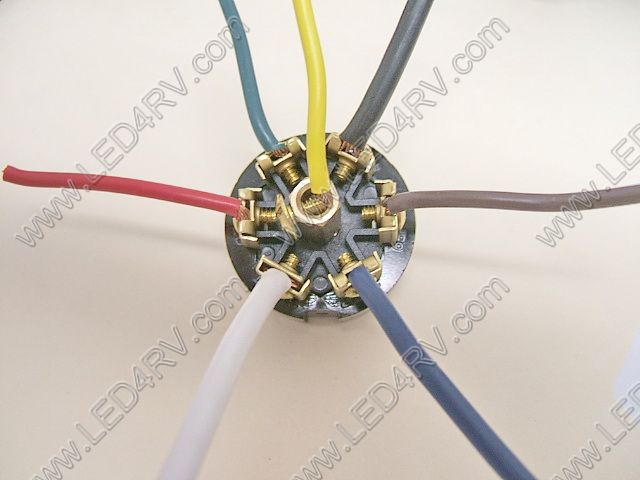

How it should look when you get finished.

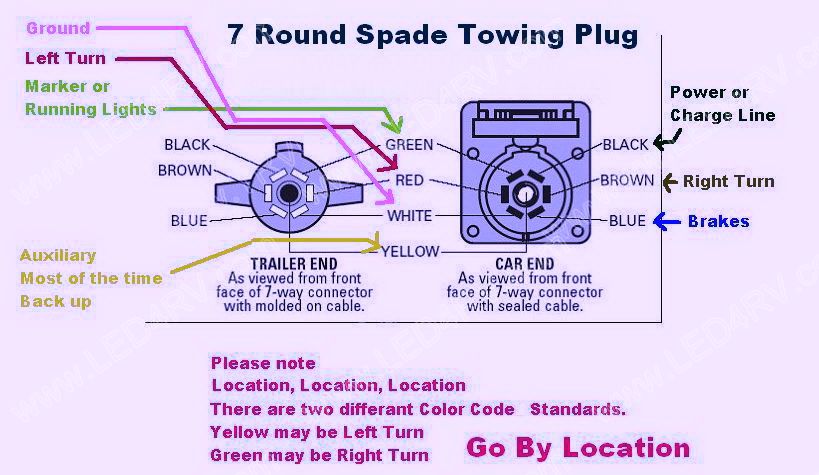

Here is the Wiring setup for the 7 Round - Spade







-------------

Our Tips and Tools Page -Electrical

This page is where we spot light tools
give tips for Electrical RV repair.
