Down this Page we have pictures of the most common
Gas Fitting used in the RV industry. Most popular at the top.

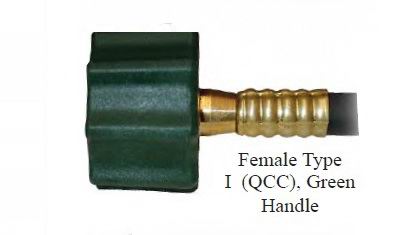

Also Known as a Female ACME fitting.

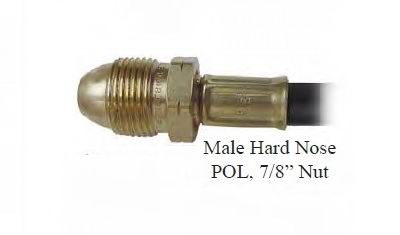

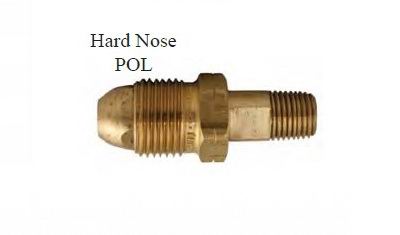

POL Hard Nose

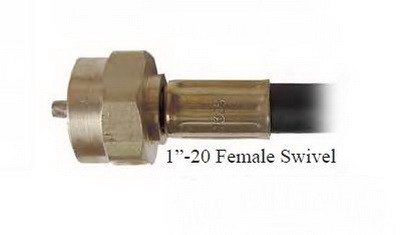

1 inch 20 Female Swivel
Most commonly used on the Small Gas
Grills which use disposable bottles.

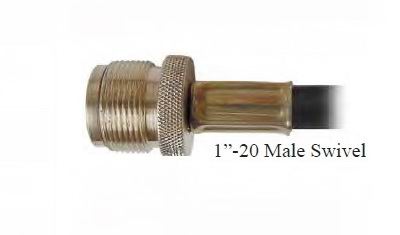

1 inch 20 Male Swivel
Most commonly used on the Small Gas
Grills which use disposable bottles.

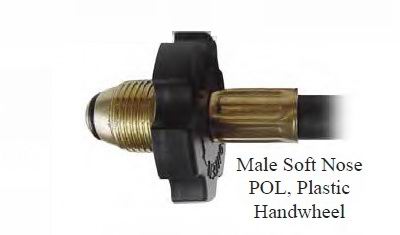

Male Soft Nose with Platic Hand Wheel.


Inverted 1/4 inch Male Flare


Inverted 1/4 inch Female Flare

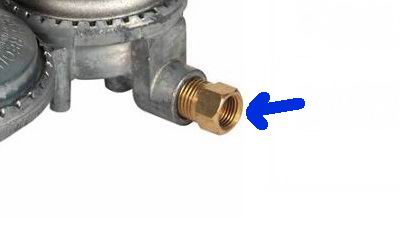

And this is where it is most commonly used,
In a Gas Regulator

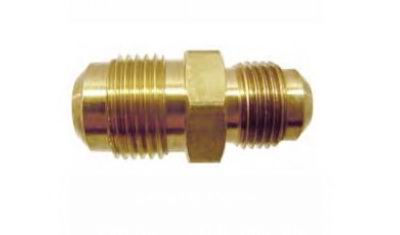

1/2 inch Flare on Left
3/8 inch Flare on the Right
This whole part is also called a Reducer

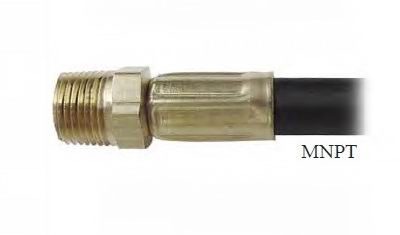

Male Nipple Pipe Thread

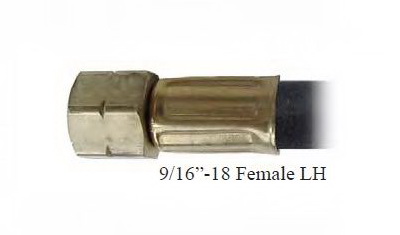

Female Swivel Left Hand


Male POL on the Left side
Male Nipple Pipe Thread on Right side

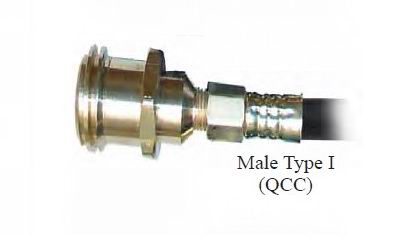

Also known as Male ACME fitting

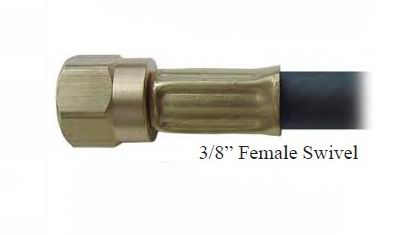

Female 3/8 inch Swivel

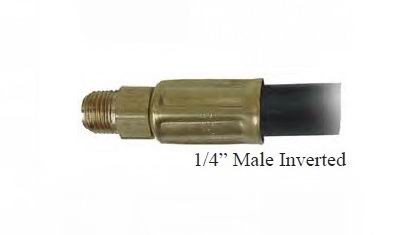

1/4 inch Male Inverted









-------------

Gas Fittings Pictures Page

This Page Shows some of the Gas Fittings with Name.
