This page is information on the change-over
to an LED tail light kit if your Lens and Cans are
missing or damaged. And/or you have the
tail light assembley picture below.

The short of it is, you will have to convert
one of the lights to a full stop tail and turn.
This is done by running a wire from one
of the other lights.

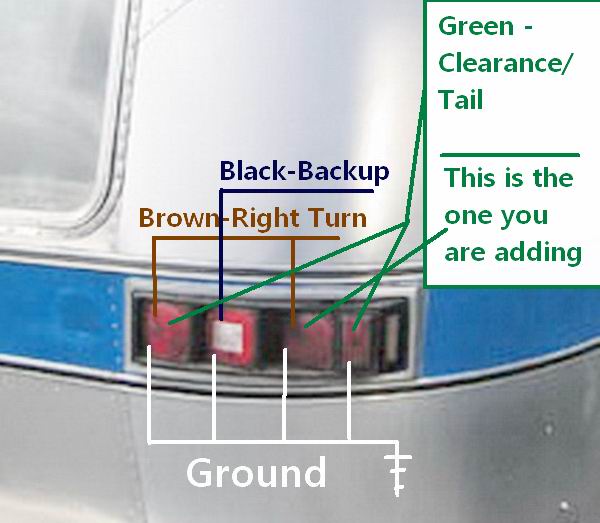

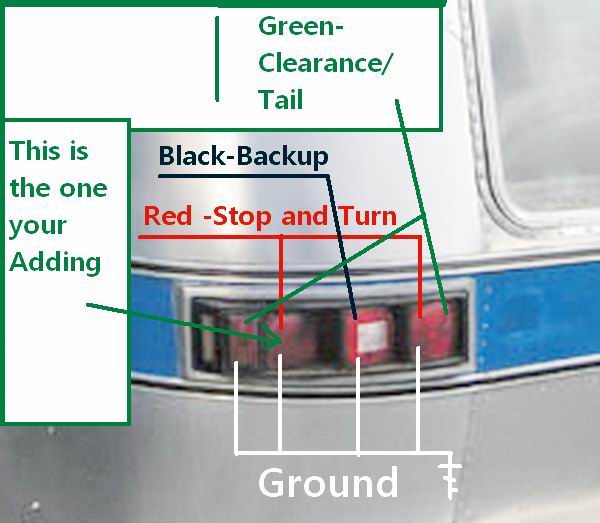

Below is the wiring diagram for
both sides of the trailer.





Click here to see that kit in your webstore.

We will be willing to provide phone and email support.
